Structures

The Structure API allows you to save and place multi-block structures exactly like vanilla Minecraft, with full support for custom blocks.

Saving a structure

To save a structure, use the custom structure block.

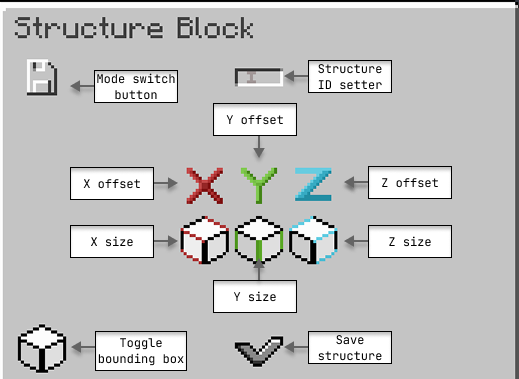

Place the structure block and open its GUI.
Switch the block to Save mode.
Configure the offset and scale using the UI to cover your intended build area.
Set the Identifier using the ID button.

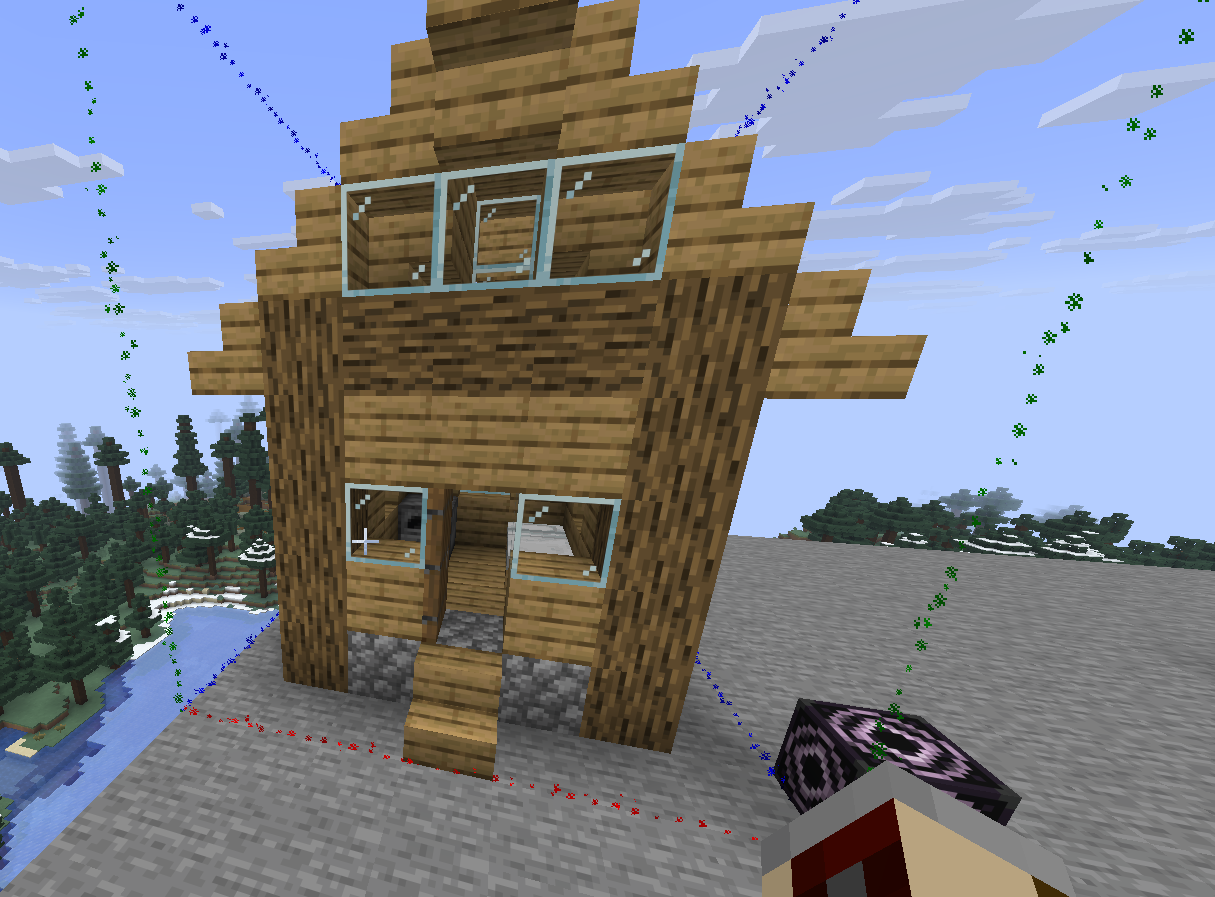

Once the configuration is complete, build your structure within the defined bounds. Re-open the GUI and press the save button.
This saves the structure as a JSON file located at: plugins/AbyssalLib/structures/<namespace>/<path>.json

Loading and placing a structure

Structures can be loaded and placed either manually in-game or programmatically via code.

Loading in-game

To place a structure in-game:

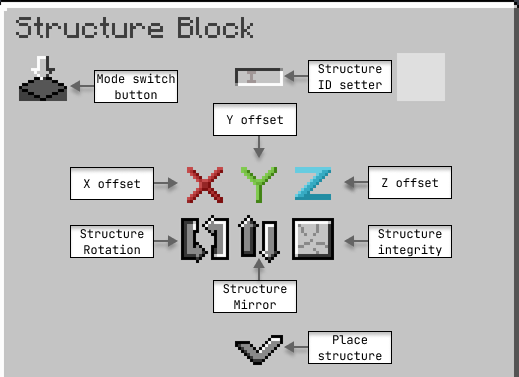

Place a structure block and set it to Load mode.
Input the exact ID of the structure you saved previously.
Configure the offset, rotation, mirror, and integrity settings as needed.

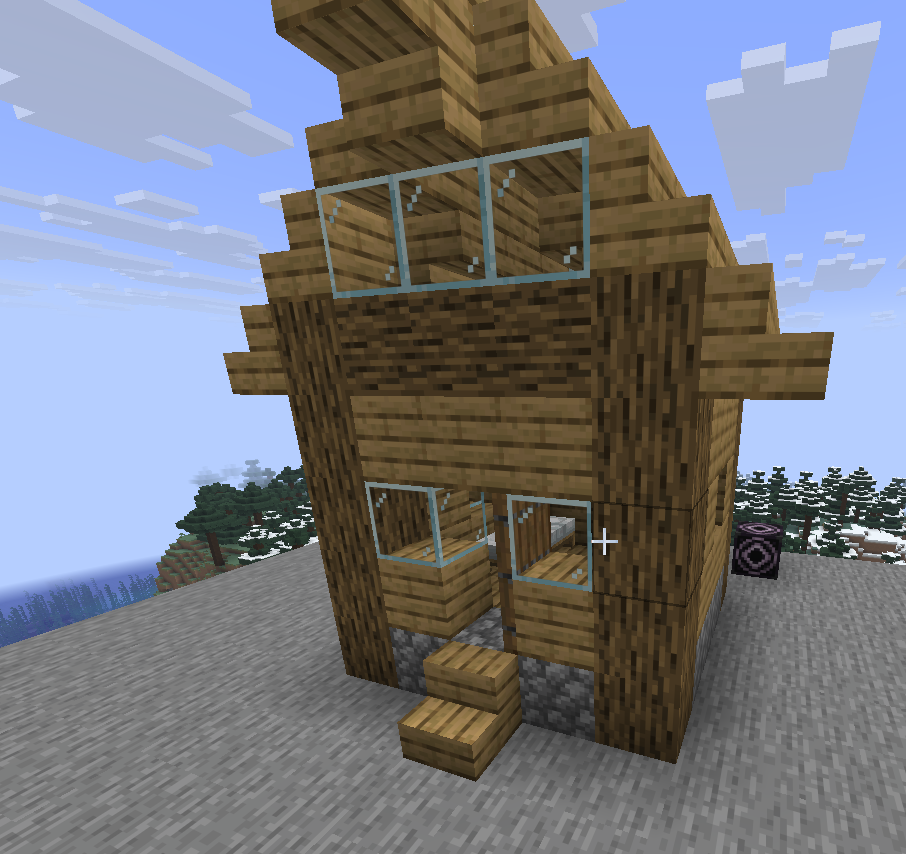

Click the load button to place the structure into the world.

Loading via code

To load a structure programmatically, first move the generated JSON file from the server's plugins folder into your plugin's resources/ directory.

Next, load the object using StructureLoader. You can then place it instantly or asynchronously.

// Load the structure from the resources folder
Structure structure = StructureLoader.loadResource(plugin, "path/to/structure.json");

// Place instantly on the main thread
structure.place(location, StructureRotation.NONE, Mirror.NONE, 1.0f);

// OR: Place asynchronously over multiple ticks to prevent lag spikes
// The last parameter dictates how many blocks are processed per tick
structure.placeAsync(plugin, location, StructureRotation.NONE, Mirror.NONE, 1.0f, 50);

Applying structure processors

Processors allow you to modify a structure dynamically as it is being placed. The API includes two default processors:

Name	ID	Parameters
`IntegrityProcessor`	`integrity`	`integrity`: A float (0.0 to 1.0) determining how much of the structure successfully places.
`BlockIgnoreProcessor`	`block_ignore`	`blocks`: A list of block IDs (e.g., `"minecraft:stone"`) to exclude from placement.

Applying processors in-game

To apply processors to an in-game structure, you must manually edit the generated JSON file to include a processors array.

{
  "size": [ 7, 8, 7 ],
  "processors": [
    {
      "type": "abyssallib:block_ignore",
      "blocks": [
        "minecraft:stone"
      ]
    }
  ],
  "palette": [
    {
      "Name": "minecraft:oak_log",
      "States": {
        "axis": "Y"
      }
    }
  ],
  "blocks": [
    {
      "pos": [ 6, 7, 6 ],
      "state": 0
    }
  ]
}

Applying processors via code

To apply processors programmatically, use the addProcessor method on your loaded Structure instance before calling place().

Structure structure = StructureLoader.loadResource(plugin, "path/to/structure.json");

// Add a processor to ignore all stone blocks during placement
structure.addProcessor(new BlockIgnoreProcessor(List.of("minecraft:stone")));

structure.place(location, StructureRotation.NONE, Mirror.NONE, 1.0f);
